69 FT FT

27 - 32 Tons

Custom reach lengths are available. Contact your sales rep for more information.

Scroll to explore

Explore the Design

Safety interlock system

Automatic interlock to prevent the machine from moving while boom and arm is in operation.

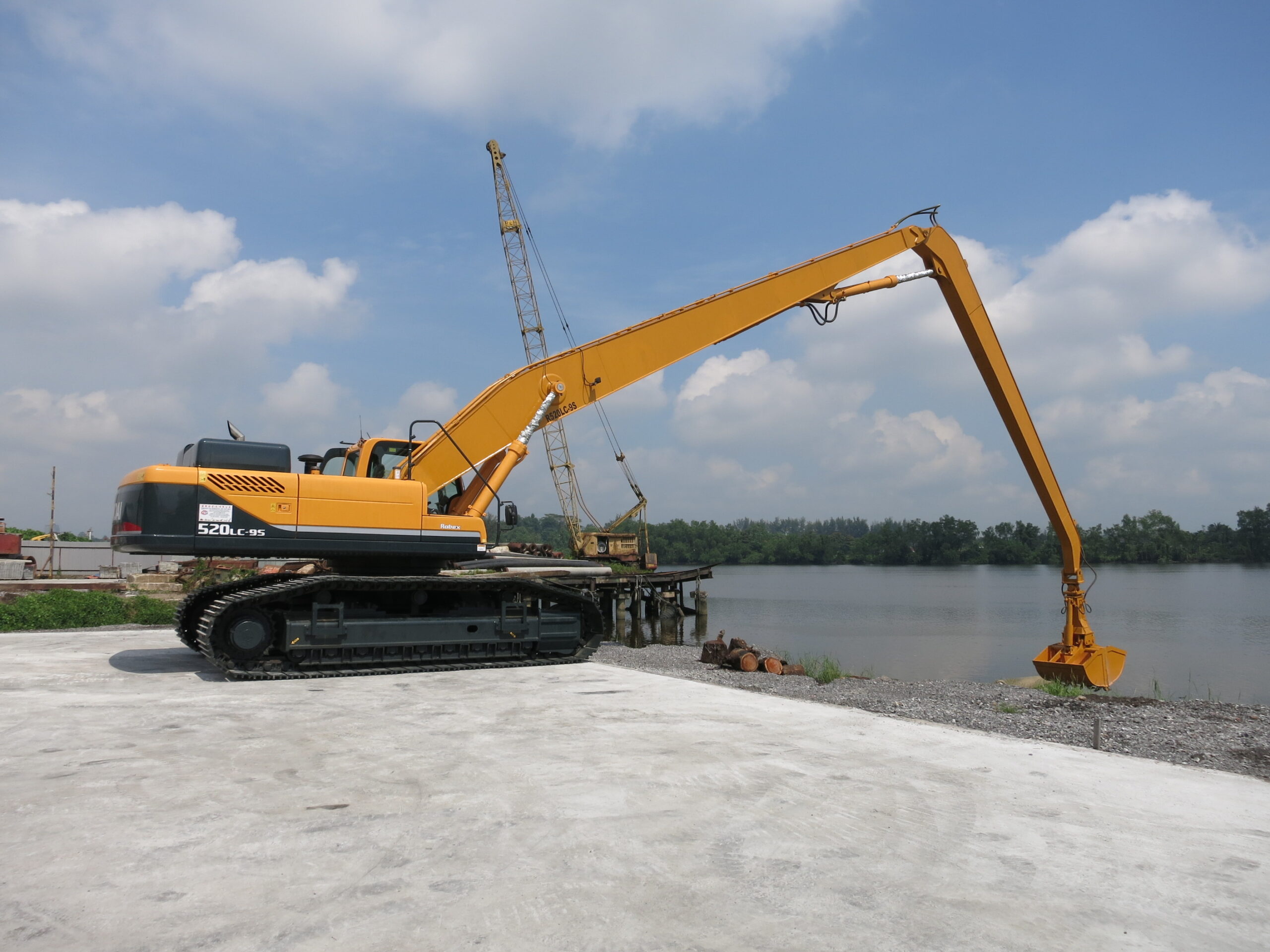

Extended reach front

Long reach front for maximum reach.

Hydraulic Modular Joint System

Hydraulic modular joint system that makes removal of the boom significantly easier.

Excavator Operating Weight	A	B	C	D	E	Maximum Tool Weight
44,000 - 48,500 lb	56’ ft	8’ 2” ft	28’ 2” ft	24’ 7” ft	20’ 7” ft	2,640 lb
59,500 - 70,500 lb	60’ ft	9’ 2” ft	32’ 1” ft	26’ 7” ft	22’ 7” ft	3,300 lb
72,800 - 83,800 lb	69’ ft	9’ 9” ft	35’ 4” ft	30’ 2” ft	25’ 7” ft	4,400 lb
101,400 - 121,300 lb	82’ ft	10’ 9” ft	43’ 3” ft	36’ 4” ft	30’ 5” ft	4,400 lb
132,300 - 150,000 lb	95’ ft	11’ 6” ft	50’ 8” ft	42’ 0” ft	37’ 7” ft	4,400 lb
154,300 - 171,600 lb	101’ ft	12’ 9” ft	54’ 9” ft	45’ 3” ft	39’ 0” ft	4,400 lb
176,400 - 209,400 lb	110’ ft	13’ 1” ft	60’ 8” ft	51’ 0” ft	45’ 10” ft	4,400 lb

Excavator Operating Weight	A	B	C	D	E	Maximum Tool Weight
20 - 22 ton	17.0 m	2.5 m	8.6 m	7.5 m	6.3 m	1.2 ton
27 - 32 ton	18.5 m	2.8 m	9.8 m	8.1 m	6.9 m	1.5 ton
33 - 38 ton	21.0 m	3.0 m	10.8 m	9.2 m	7.8 m	2.0 ton
46 - 55 ton	25.0 m	3.3 m	13.2 m	11.1 m	9.3 m	2.0 ton
60 - 68 ton	29.0 m	3.5 m	15.5 m	12.8 m	11.5 m	2.0 ton
70 - 78 ton	31.0 m	3.9 m	16.7 m	13.8 m	11.9 m	2.0 ton
80 - 95 ton	33.5 m	4.0 m	18.5 m	15.5 m	14.0 m	2.0 ton

* The above specifications are for reference only, actual working range may vary from machine models.
** For the benefit of continuous product improvement, specifications are subjected to change without prior notice.
